Drawer Slide Construction Materials



We use a combination of standard lightweight materials for the manufacture of each drawer slide unit in an effort to reduce overall weight while still maintaining strength and durability.

  • Facebook App Icon
  • Twitter App Icon
  • Google+ App Icon
All Aluminium Constuction

  • Base frame fabricated from 50mm x 3mm aluminium angle

  • Drawer slider fabricated from lightweight 3,5mm/4,0mm "checker plate" aluminium

  • Light duty sliders - 45 kg loading with full pull-out lengths of 300mm to 700mm

  • Medium duty sliders - 65 kg loading with full pullout lengths of 400mm to 550mm

  • Heavy duty sliders - 90 kg loading with full pull-out lengths from 300mm to 1000mm

  • Extra heavy duty sliders - 180 kg loading with full pullout lengths of 450mm to 1430mm

  • Slider widths from 400mm up to 1200mm

  • "In transit" anti loose locking mechanism

  • Robust "U" type grab handle tie down points both front and rear

  • Suitable for floor mounting in most off road vehicles



  • Base frame fabricated from 50mm x 3mm aluminium or mild steel angle

  • Drawer slider frame fabricated from lightweight 25mm aluminium square tubing

  • Drawer slide floor fabricated from 18mm x 8 ply laminate covered in Belgotex carpet

  • Light duty sliders - 45 kg loading with full pull-out lengths of 300mm to 700mm

  • Medium duty sliders - 65 kg loading with full pullout lengths of 400mm to 550mm

  • Heavy duty sliders - 90 kg loading with full pull-out lengths from 300mm to 1000mm

  • Extra heavy duty sliders 180 kg loading with full pullout lengths of 450mm to 1430mm

  • Slider widths from 400mm up to 1200mm

  • "In transit" spring loaded locking mechanism

  • Robust "U" type grab handle tie down points both front and rear

Carpet surface finish

  • Base frame fabricated from 50mm x 3mm aluminium or mild steel angle

  • Drawer slider frame fabricated from lightweight 25mm aluminium square tubing

  • Drawer slide floor fabricated from 18mm x 8 ply laminate covered in a flexible rubber covering - Robust and easy to keep clean

  • Light duty sliders - 45 kg loading with full pull-out lengths of 300mm to 700mm

  • Medium duty sliders - 65 kg loading with full pullout lengths of 400mm to 550mm

  • Heavy duty sliders - 90 kg loading with full pull-out lengths from 300mm to 1000mm

  • Extra heavy duty sliders 180 kg loading with full pullout lengths of 450mm to 1430mm

  • Slider widths from 400mm up to 1200mm

  • "In transit" spring loaded locking mechanism

  • Robust "U" type grab handle tie down points both front and rear

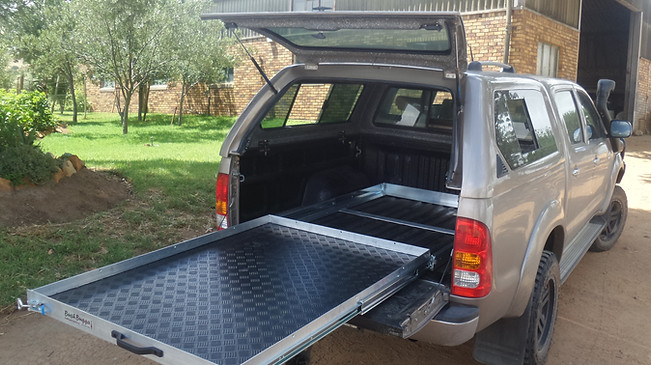

Rubber topped sliders

"Flat 4" Ammo box sliders

  • Base frame fabricated from 50mm x 3mm aluminium or mild steel angle

  • Drawer slider frame fabricated from 25mm x 25mm mild steel angle iron (Epoxy coated)

  • Heavy duty sliders - 90 kg loading with full pull-out lengths from 300mm to 1000mm

  • Extra heavy duty sliders 180 kg loading with full pullout lengths of 450mm to 1430mm

  • Slider widths can range from 400mm up to 1200mm

  • "In transit" spring loaded locking mechanism

  • Tie down points both front and rear

  • Specifically designed for floor mounting in off road trailers and utility vehicles

Multipurpose Heavy Duty Cargo Sliders

  • Base frame fabricated from lightweight 75mm x 75mm x 3mm aluminium angle

  • Drawer slider frame fabricated from lightweight 75mm x 75mm x 3mm aluminium angle

  • Drawer slide floor fabricated from 18mm x 7 ply laminate covered in a flexible rubber covering - Robust and easy to keep

  • Heavy duty sliders - 90 kg loading with full pull-out lengths from 800mm to 1000mm

  • Extra heavy duty sliders 180 kg loading with full pullout lengths of 1220mm to 1430mm

  • Slider widths from 400mm up to 1200mm

  • "In transit" throw over locking mechanism
